Albany — Modular Home
Home/Models/Albany

Modular Home

The Albany

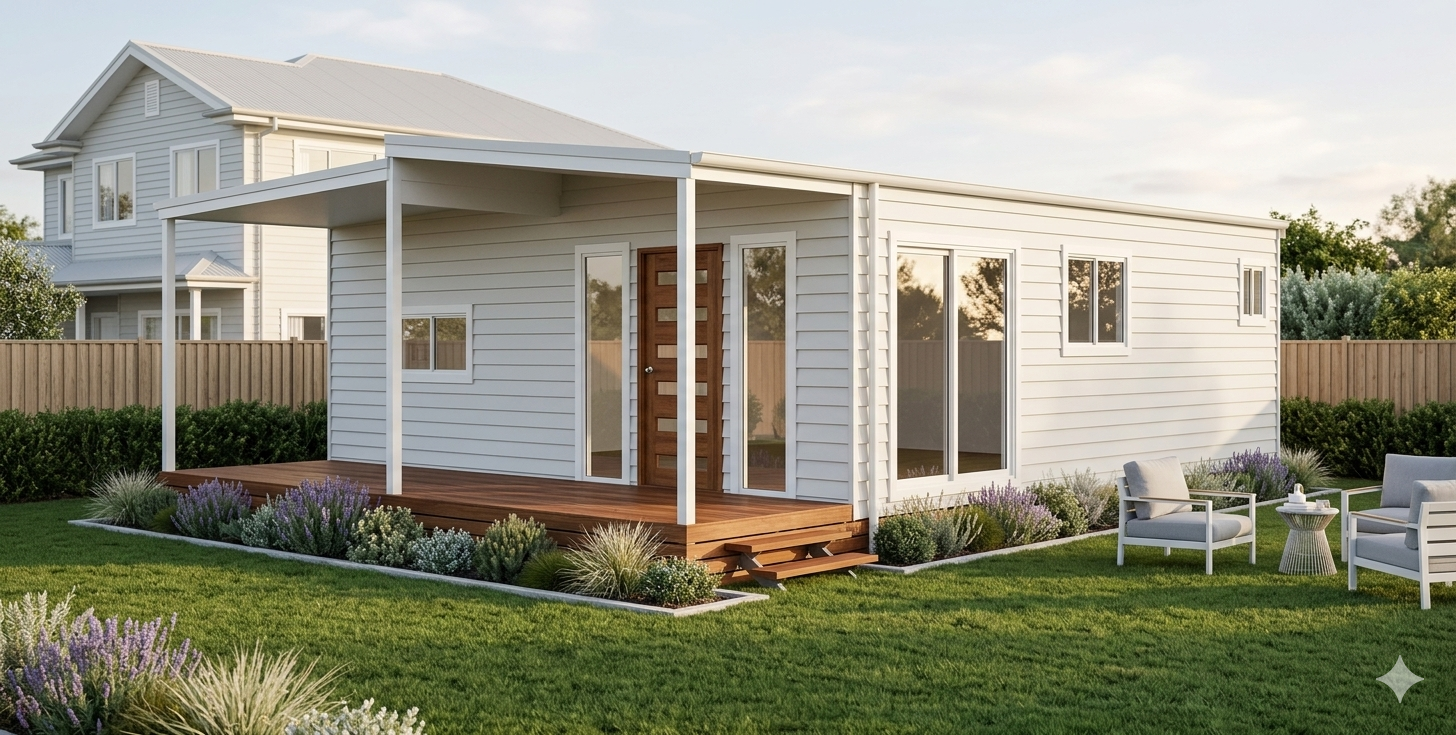

Compact and cozy, the Albany is the perfect choice for singles or couples looking for a modern, low-maintenance home.

4.

Sleeps

2.

Bedrooms

1.

Bathroom

54.4 m²

Floor Area

The Design

About the Albany

Compact and cozy, the Albany is the perfect choice for singles or couples looking for a modern, low-maintenance home. With a smart floor plan that maximizes space, this one-bedroom, one-bathroomhome offers comfort, style, and functionality in a neat 8m x 6.8m design.

Get Instant Pricing Full Architectural Drawings Enquire about the Albany

Gallery

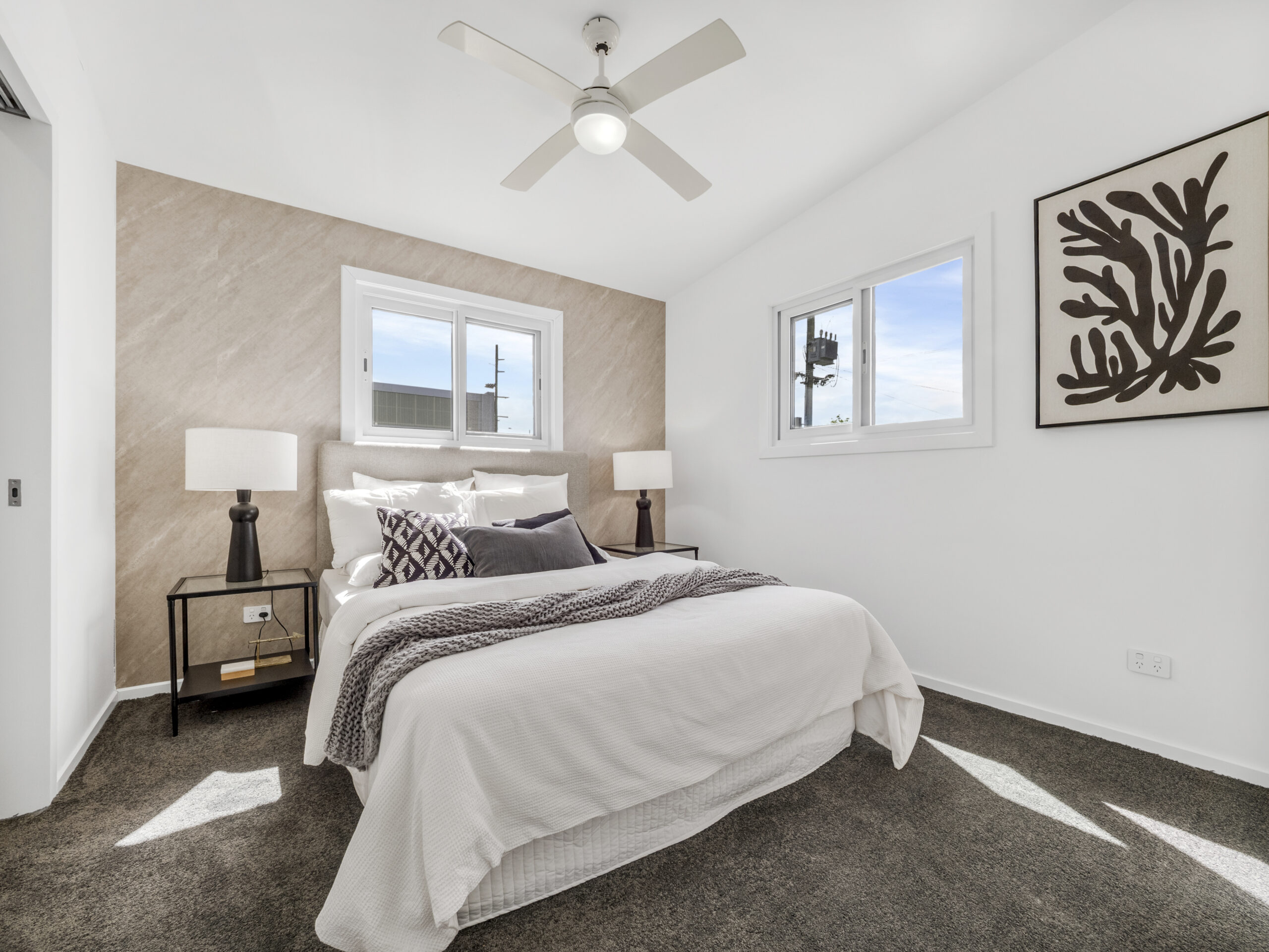

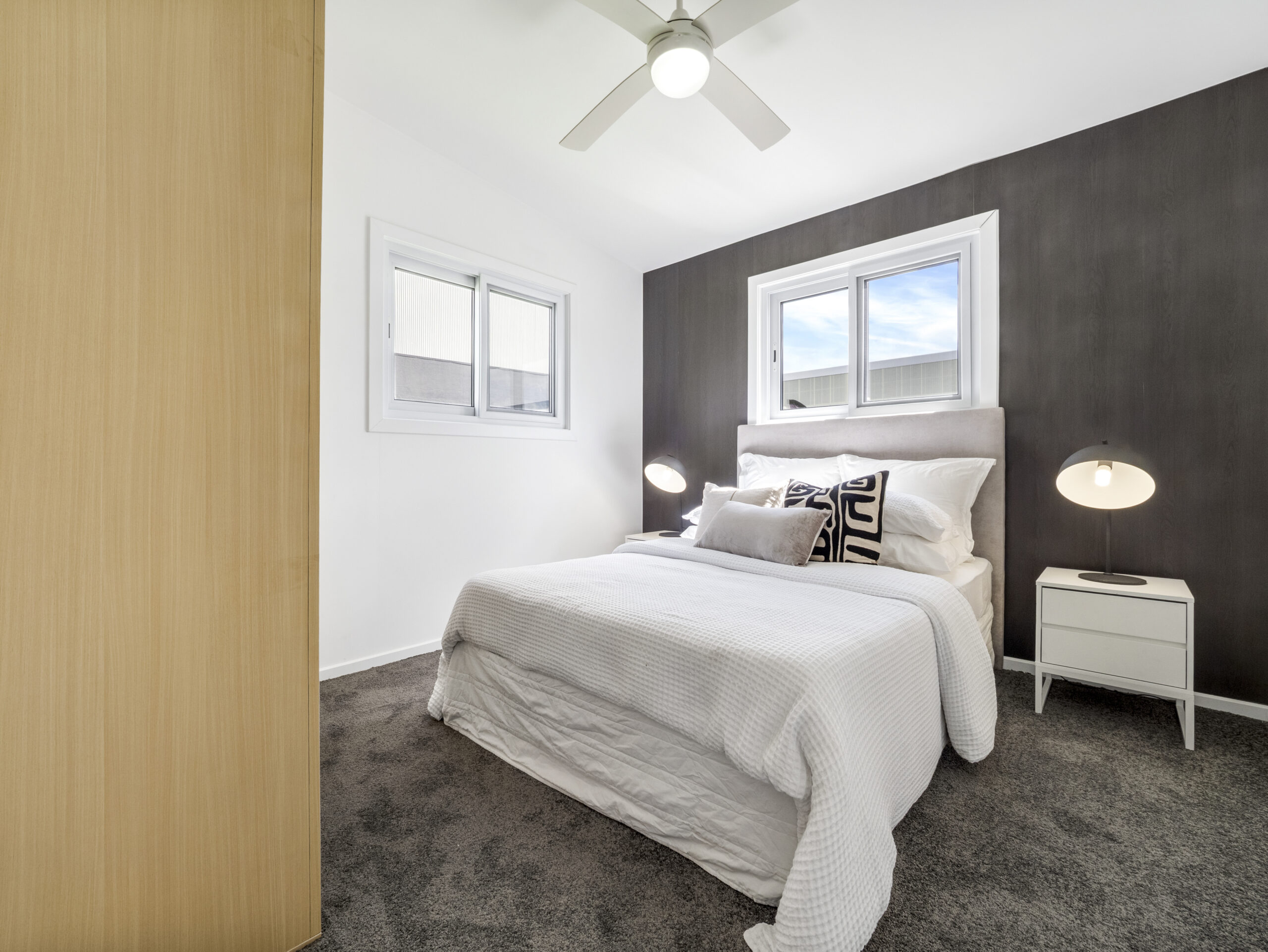

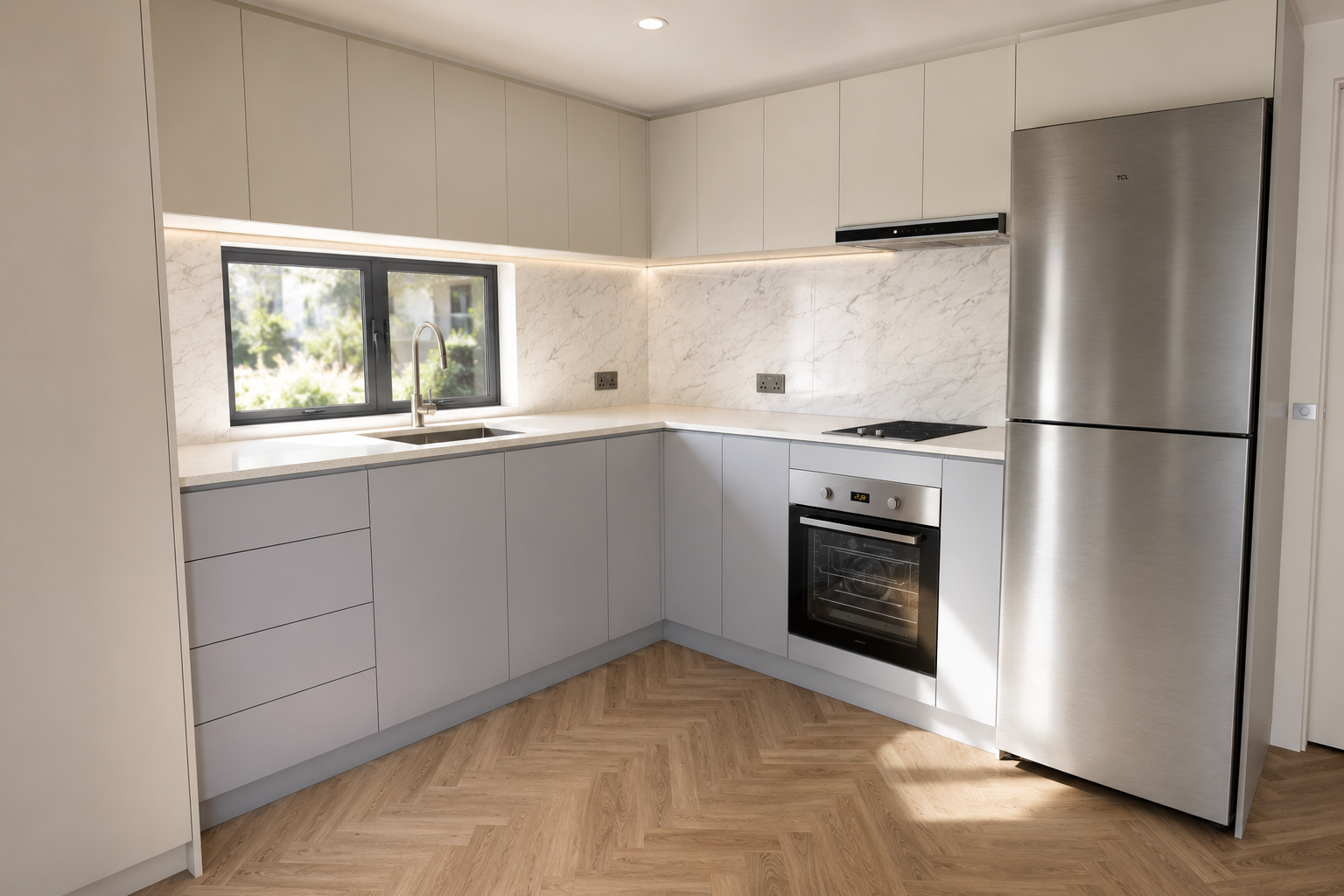

Inside the Albany

Albany — photo 1 Albany — photo 3 Albany — photo 4 Albany — photo 5

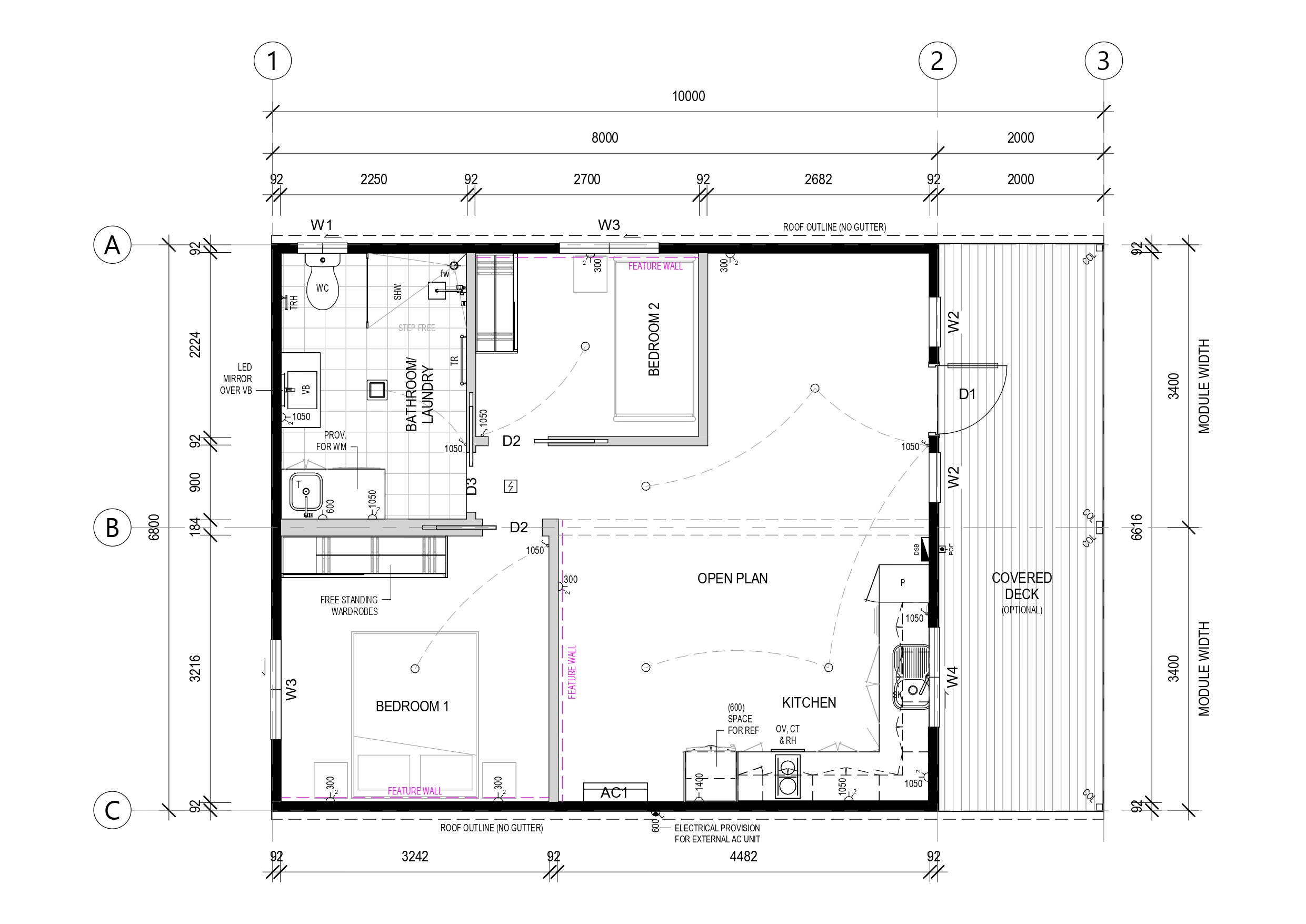

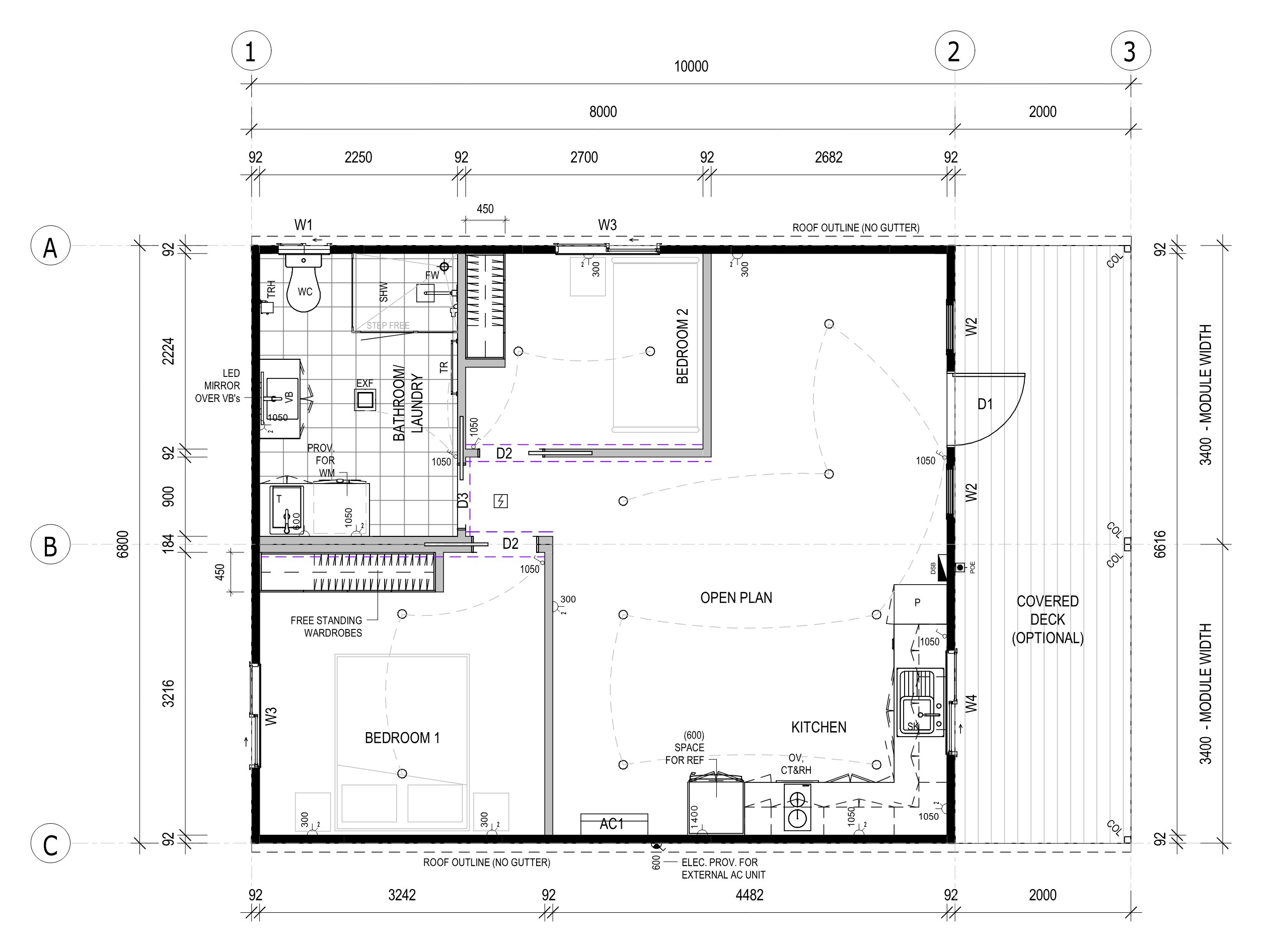

Floor Plan

Layout & dimensions

Albany floor plan

Specifications

Engineered to last

Sub-Floor System

  • Skid beams: W10x22 steel skid beam system

Floor System

  • Floor framing: 100 x 1.5mm lipped channel joists @ 450mm CS
  • Insulation – u/floor: R15 (or equiv.) minimum insulation value
  • Flooring: 3/4″ structural plywood
  • Floor covering: SPC planks (stone plastic composite core)
  • Decking: Composite timber decking

Wall System

  • Framing: 92mm (or equiv.) engineered steel frame
  • Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
  • Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
  • Internal: 5/8″ drywall, set & painted
  • Bathroom: Lined with SPC sheets

Roof System

  • Roof system: Engineered steel frame/rafter system
  • Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
  • Roofing: Steel panel roofing
  • Internal: 5/8″ drywall, set & painted (square set)
