Bondi — Granny Flat
Home/Models/Bondi

Granny Flat

The Bondi

Stylish and practical, the Bondi is designed for those who value comfort in a compact space.

2.

Sleeps

1.

Bedroom

1.

Bathroom

27.2 m²

Floor Area

The Design

About the Bondi

Stylish and practical, the Bondi is designed for those who value comfort in a compact space. With a spacious bedroom and modern bathroom, this 7m x 3.4m granny flat is ideal for a guest retreat or rental unit.

Get Instant Pricing Full Architectural Drawings Enquire about the Bondi

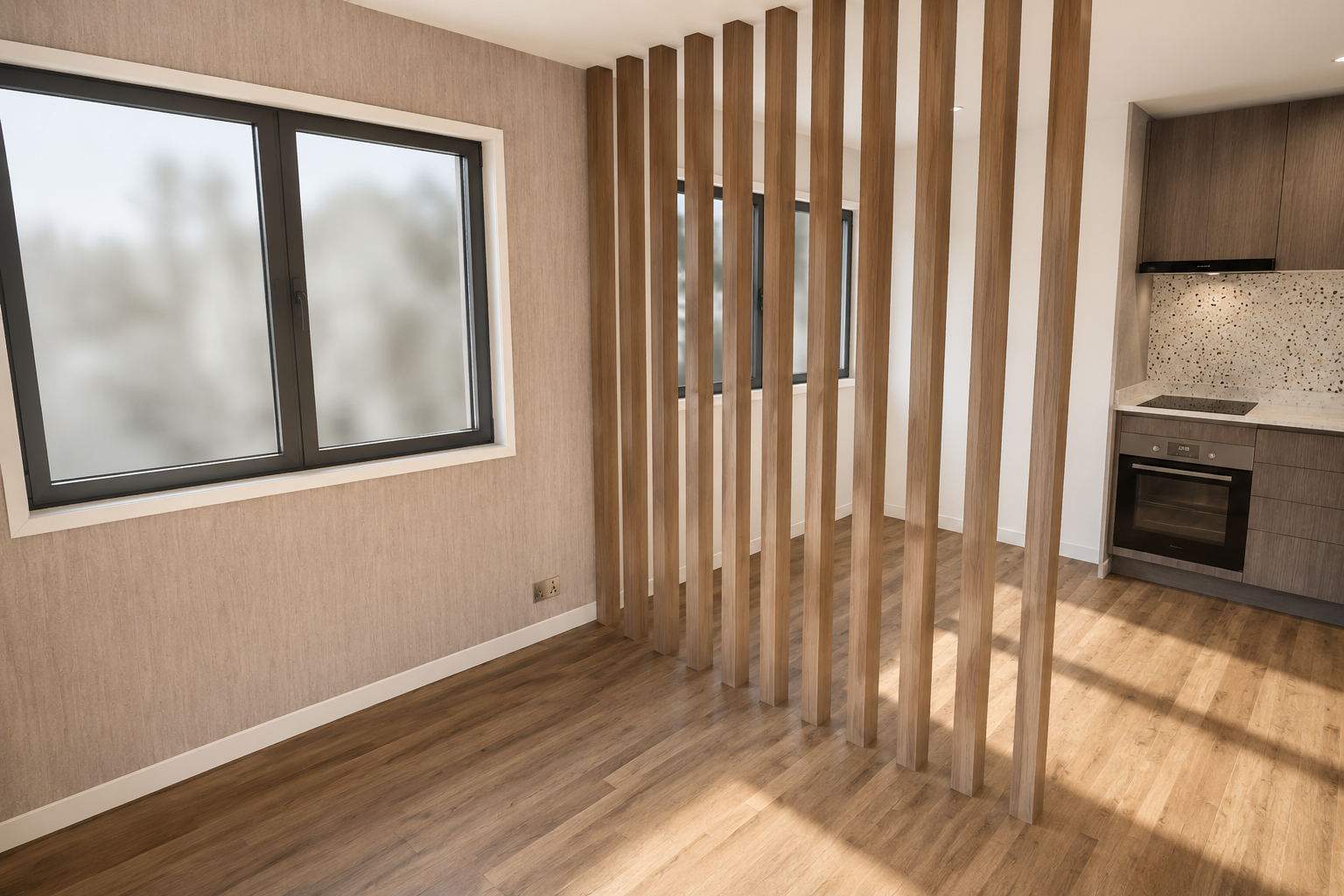

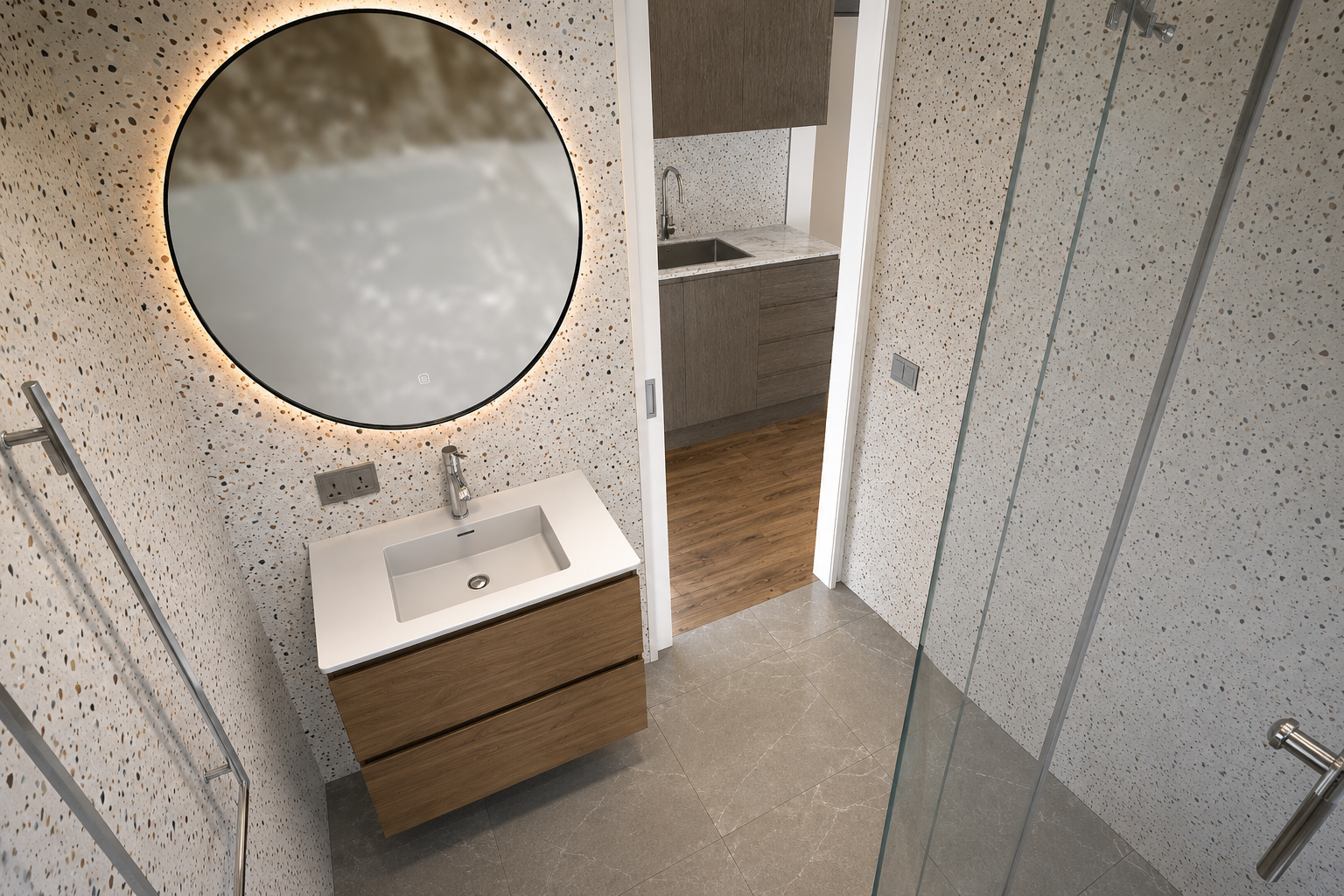

Gallery

Inside the Bondi

Bondi — photo 1 Bondi — photo 3 Bondi — photo 4

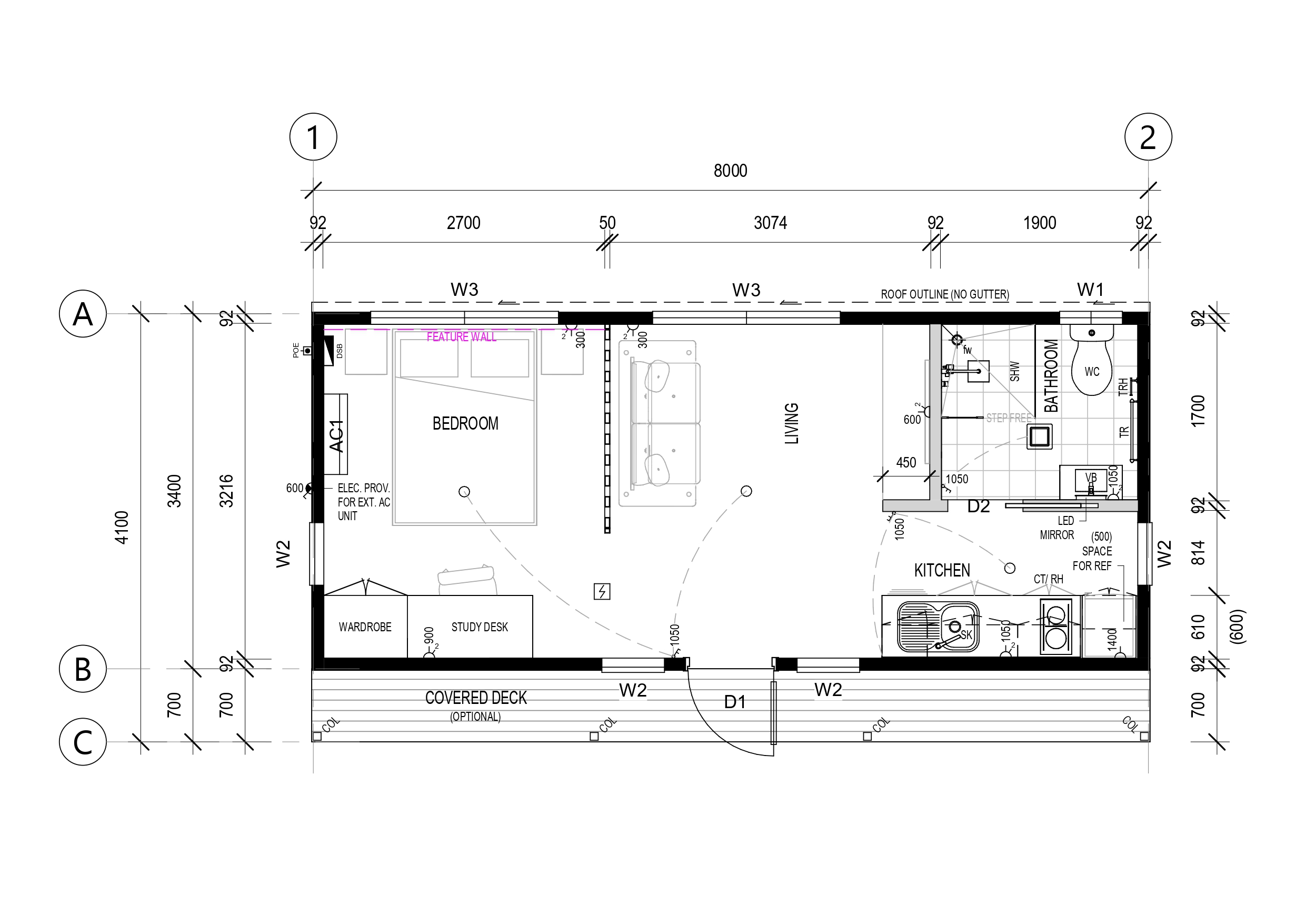

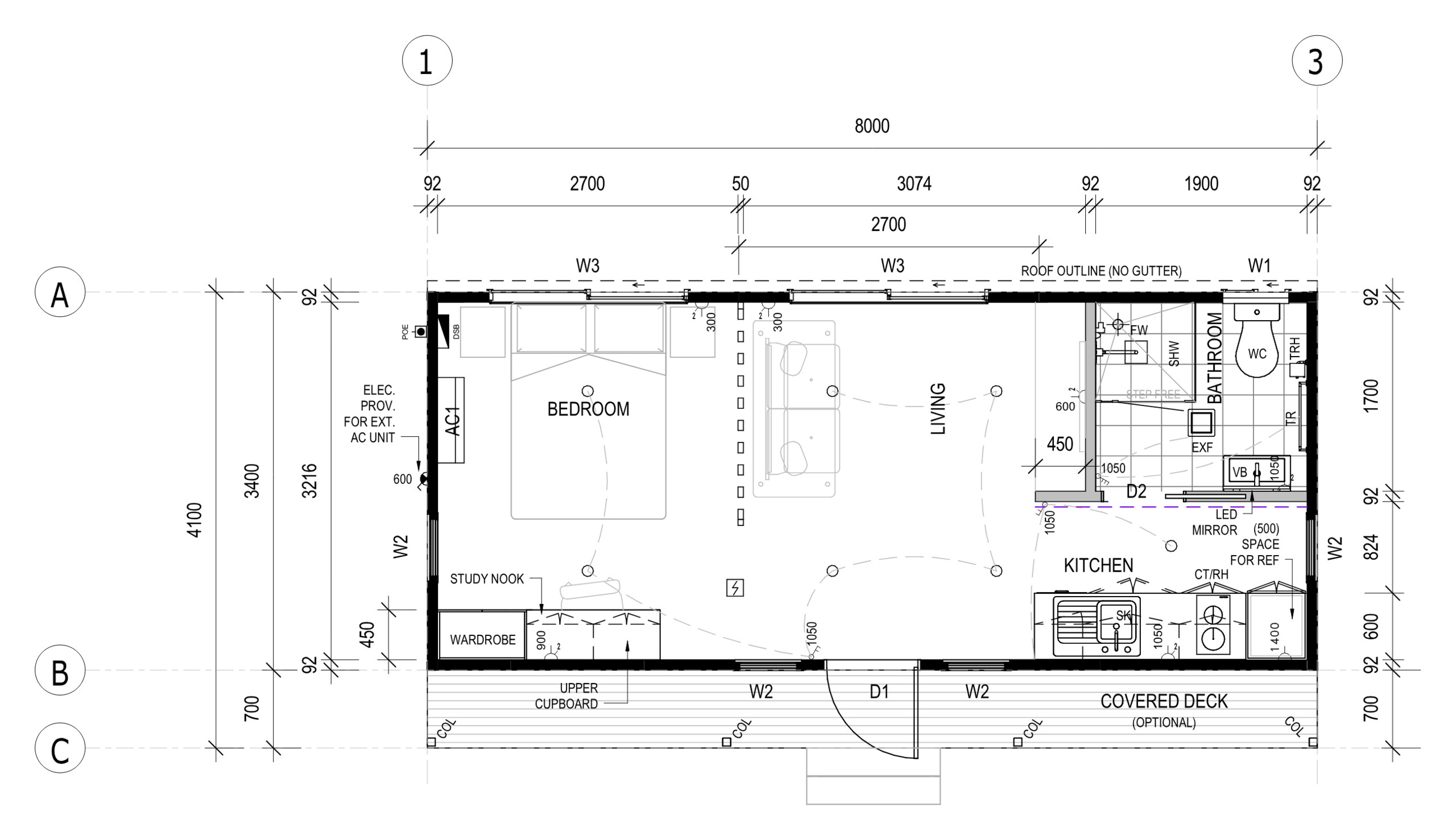

Floor Plan

Layout & dimensions

Bondi floor plan

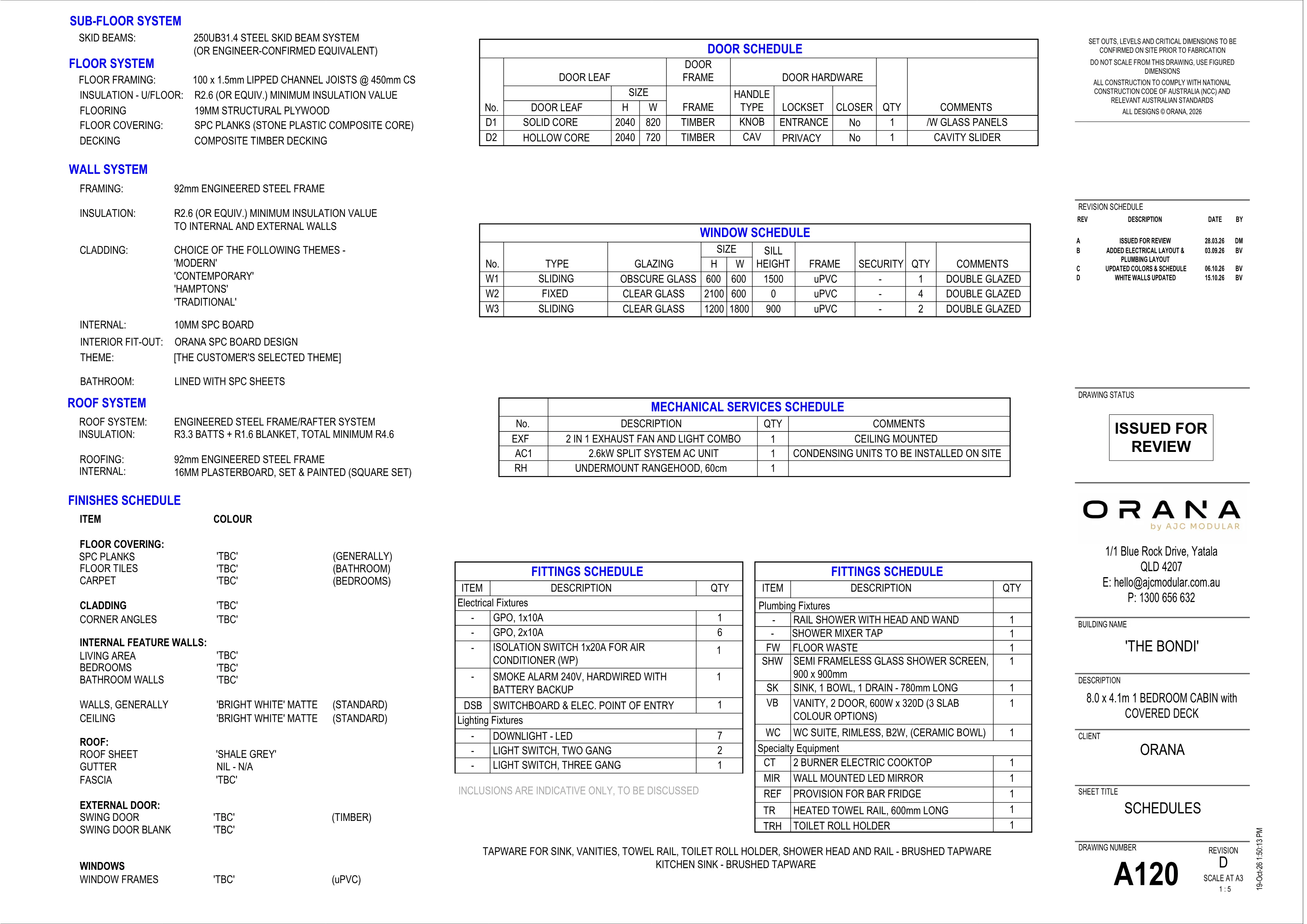

Specifications

Engineered to last

Sub-Floor System

  • Skid beams: W10x22 steel skid beam system

Floor System

  • Floor framing: 100 x 1.5mm lipped channel joists @ 450mm CS
  • Insulation – u/floor: R15 (or equiv.) minimum insulation value
  • Flooring: 3/4″ structural plywood
  • Floor covering: SPC planks (stone plastic composite core)
  • Decking: Composite timber decking

Wall System

  • Framing: 92mm (or equiv.) engineered steel frame
  • Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
  • Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
  • Internal: 5/8″ drywall, set & painted
  • Bathroom: Lined with SPC sheets

Roof System

  • Roof system: Engineered steel frame/rafter system
  • Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
  • Roofing: Steel panel roofing
  • Internal: 5/8″ drywall, set & painted (square set)
Start your enquiry

Ready to chat?

Five short steps, about two minutes. We’ll come back to you within one business day.
