Snowy — Granny Flat
Home/Models/Snowy

Granny Flat

The Snowy

The Snowy is the ultimate in versatility, offering three bedrooms and one bathroom in a generous 15m x 4.2m design.

6.

Sleeps

3.

Bedrooms

1.

Bathroom

67.2 m²

Floor Area

The Design

About the Snowy

The Snowy is the ultimate in versatility, offering three bedrooms and one bathroom in a generous 15m x 4.2m design. Ideal for families or shared living, this flat combines modern finishes with functional living spaces.

Get Instant Pricing Full Architectural Drawings Enquire about the Snowy

Gallery

Inside the Snowy

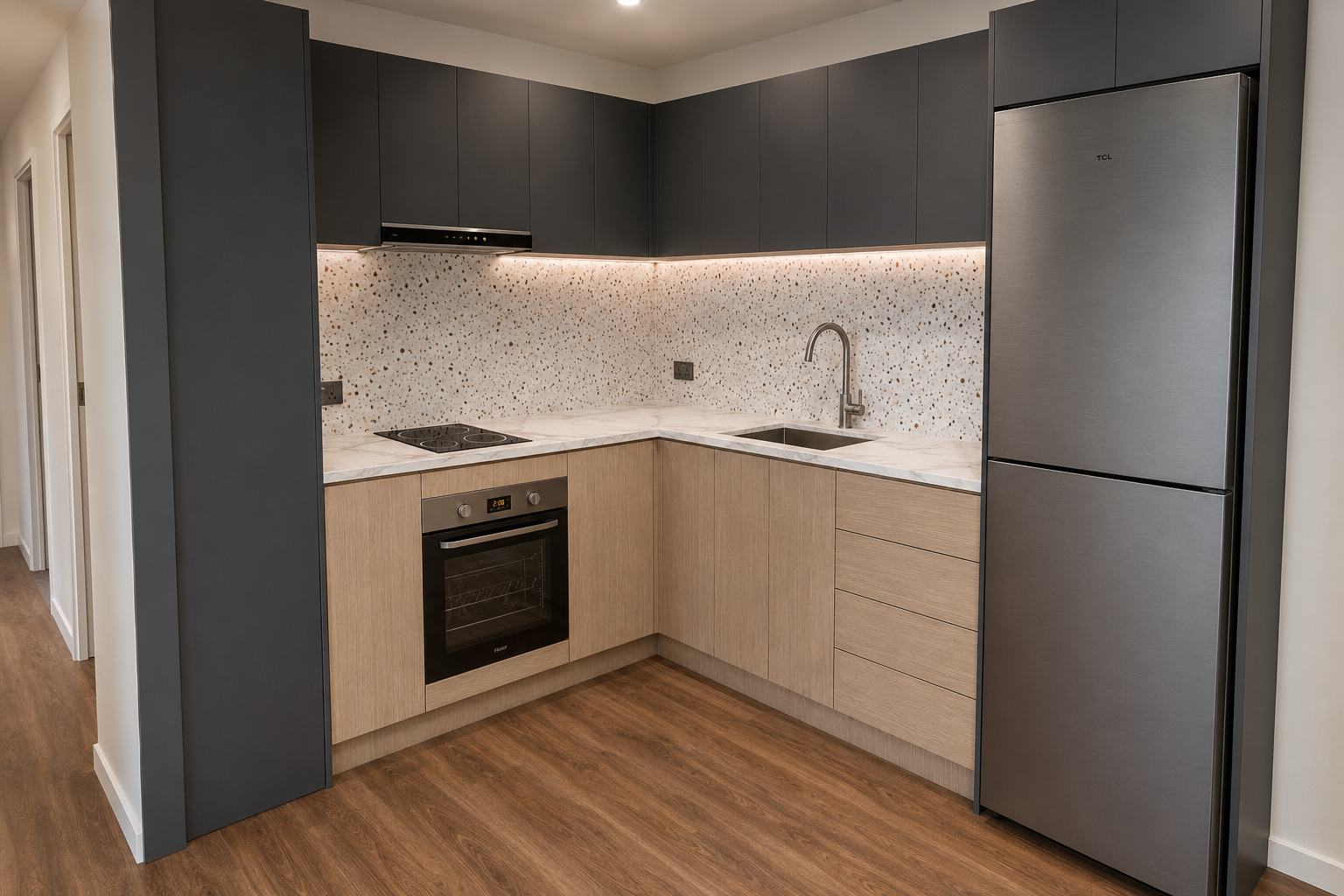

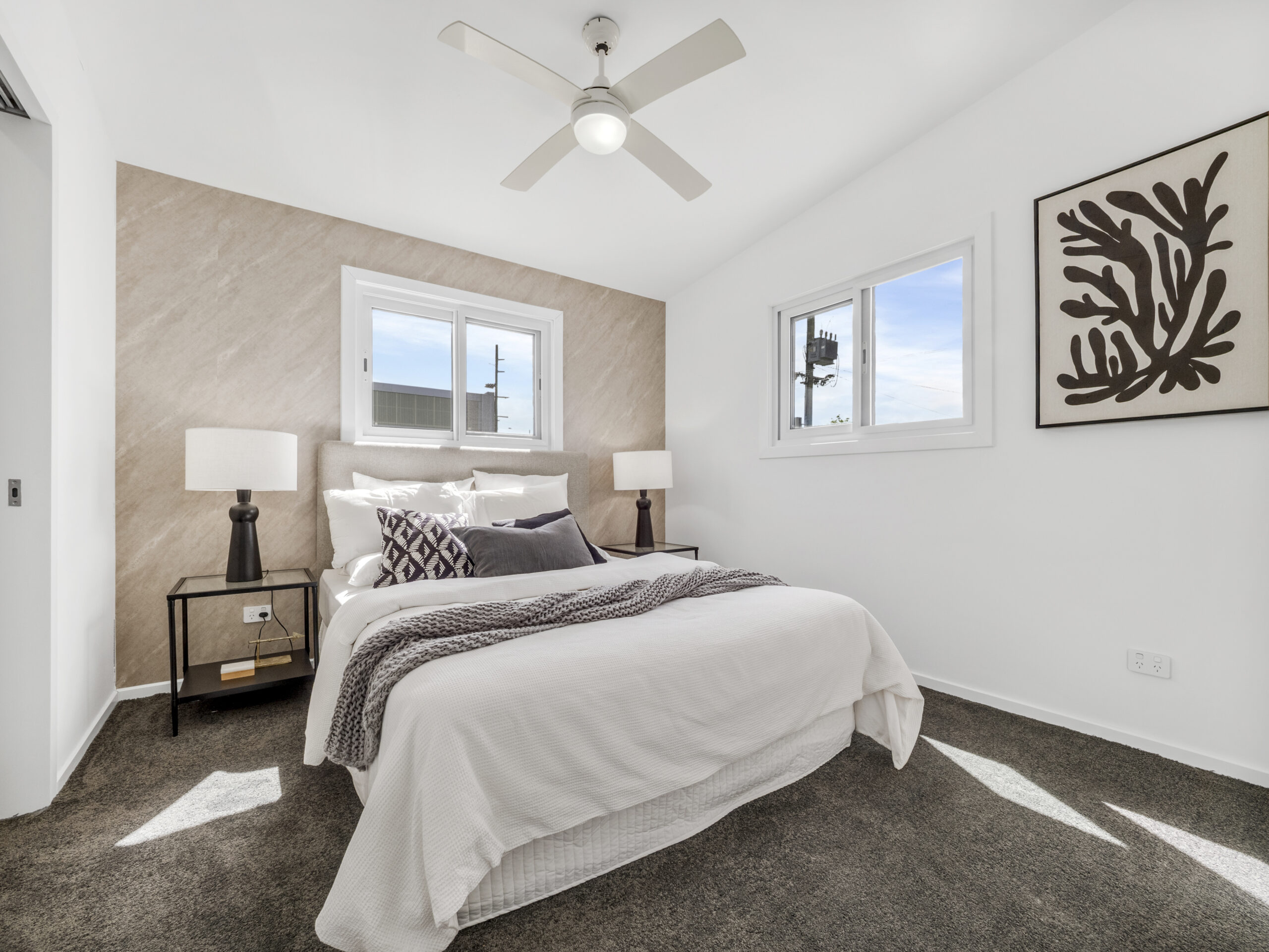

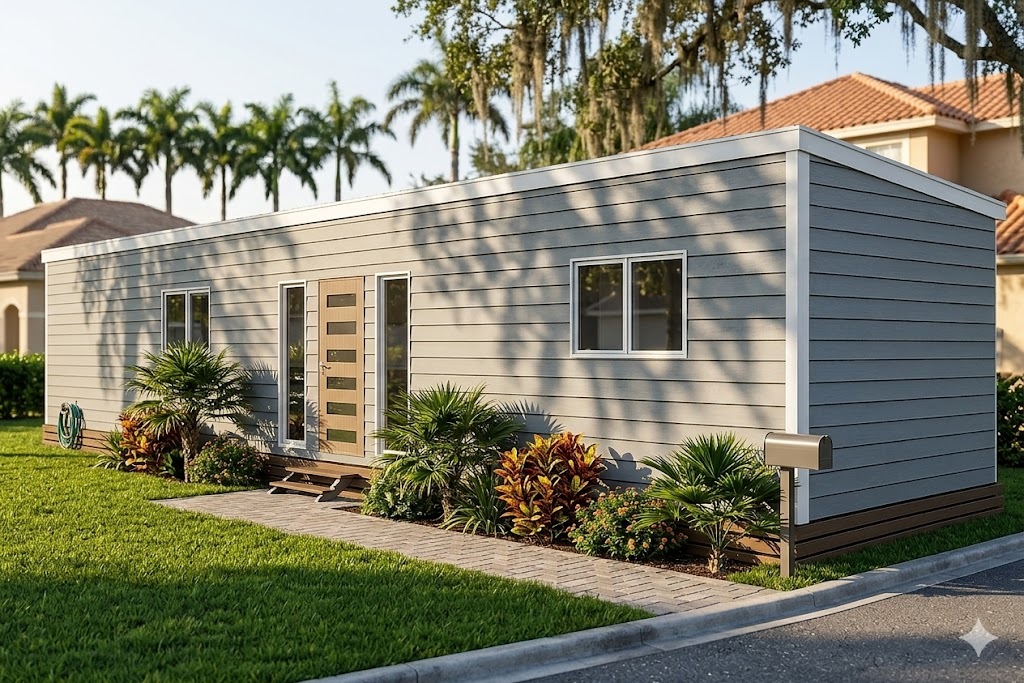

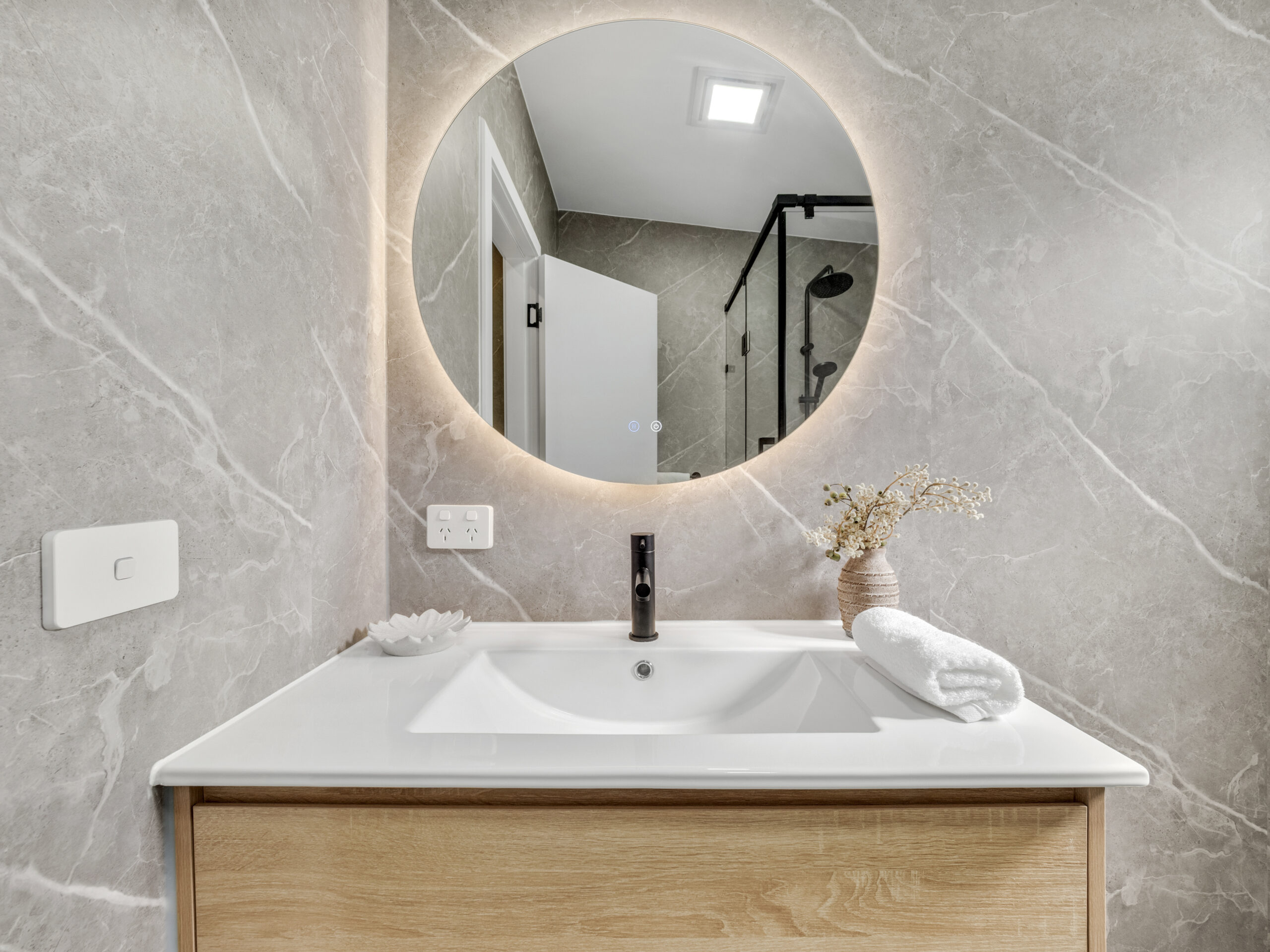

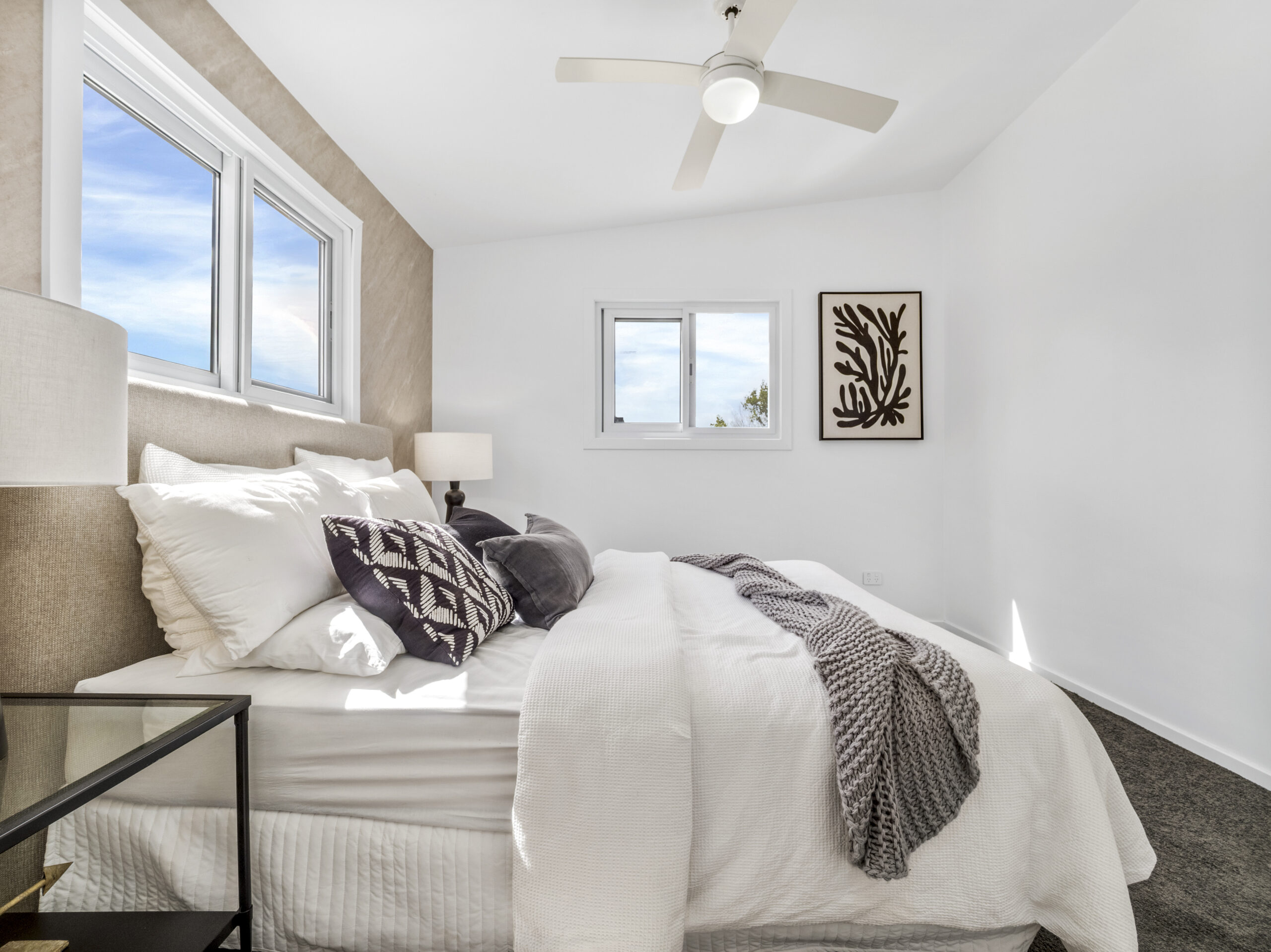

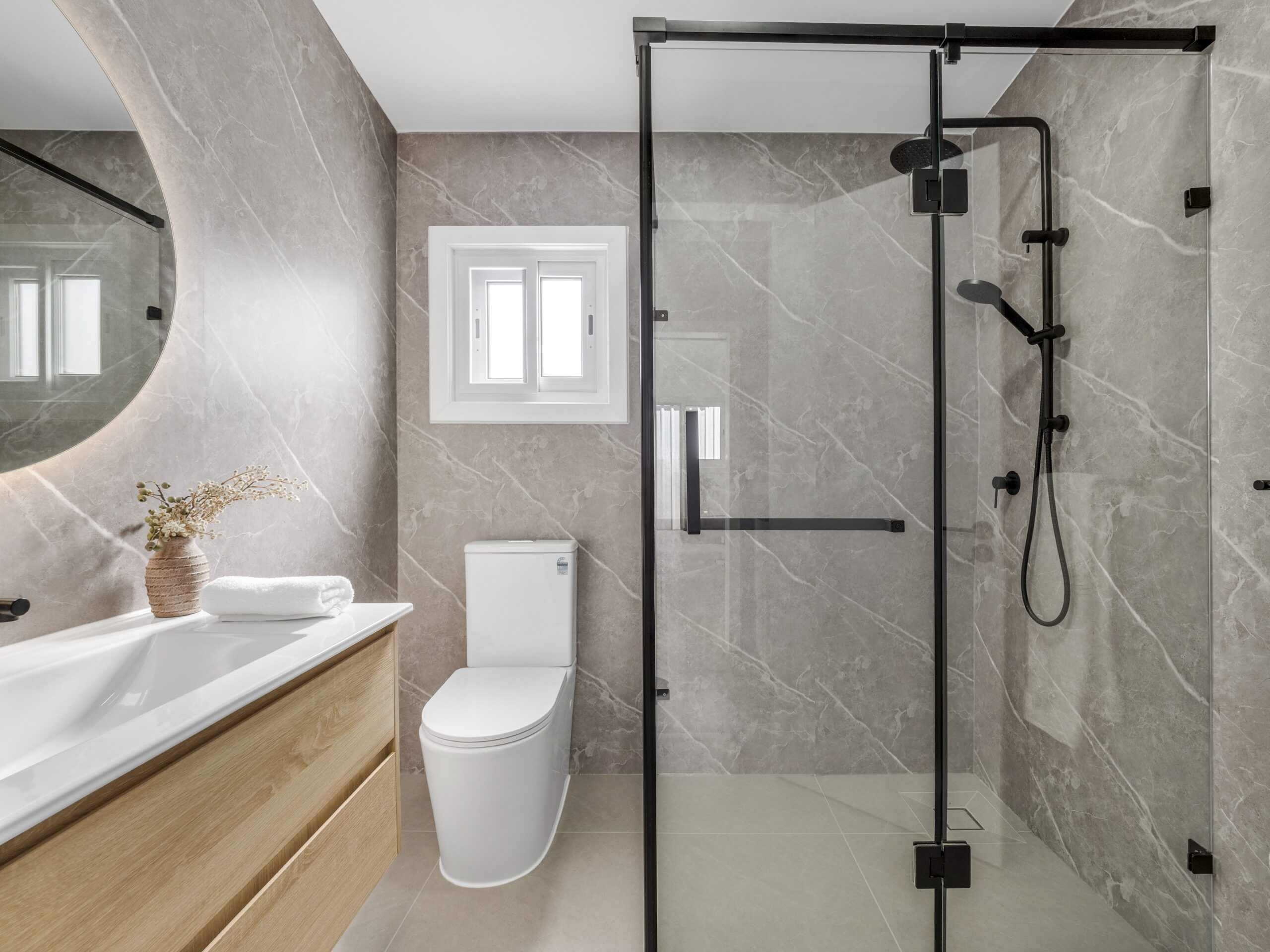

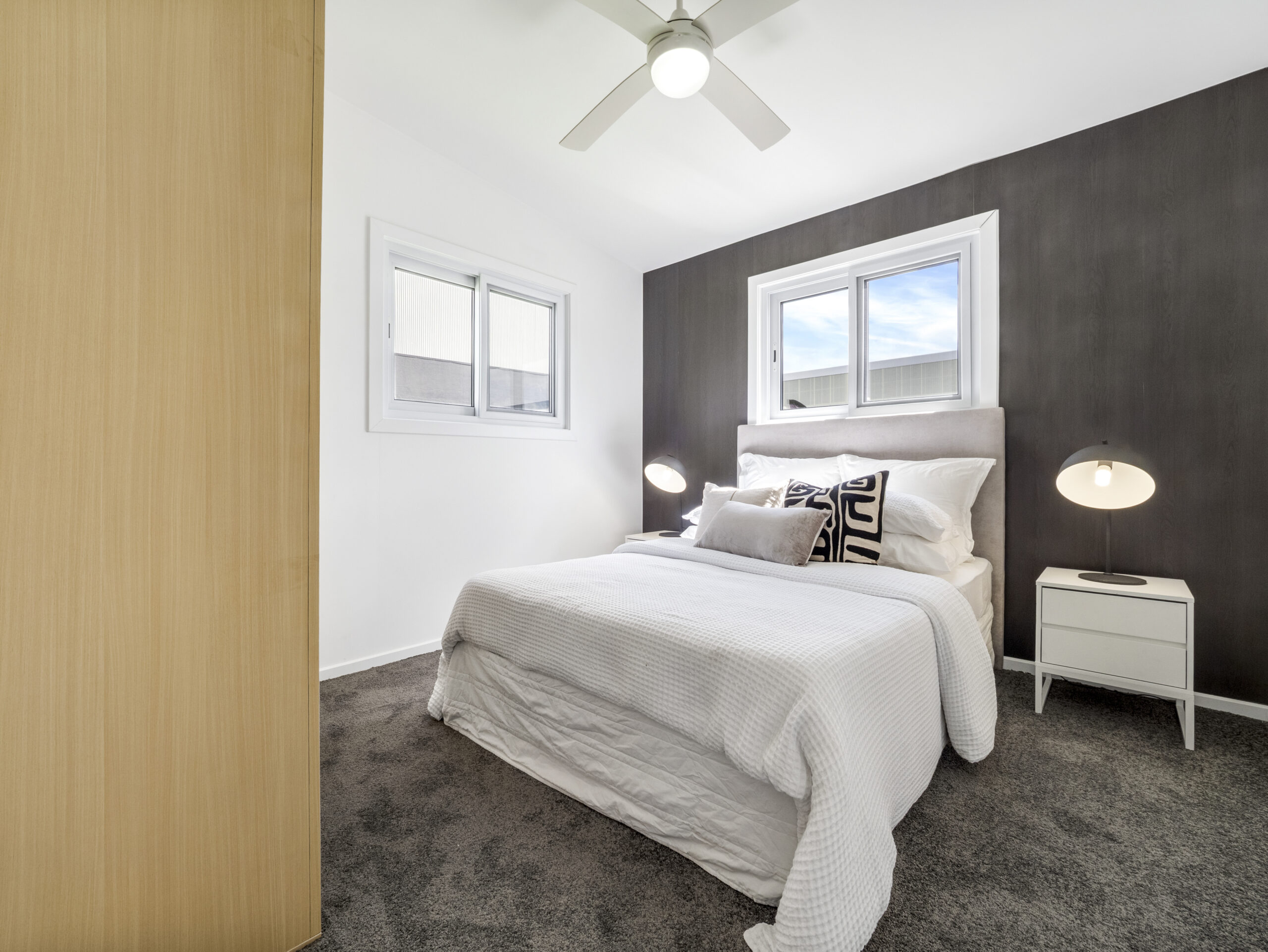

Snowy — photo 1 Snowy — photo 3 Snowy — photo 4 Snowy — photo 5 Snowy — photo 6 Snowy — photo 7 Snowy — photo 8

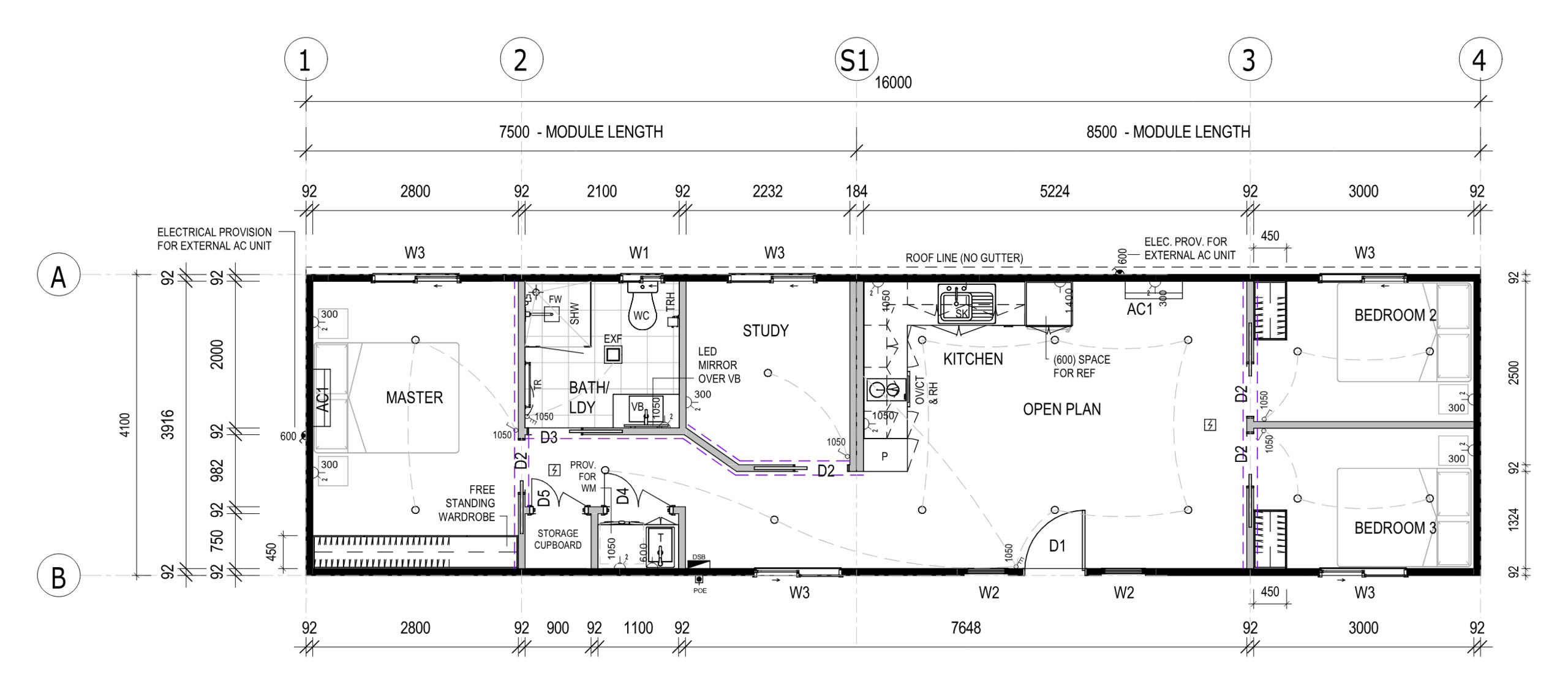

Floor Plan

Layout & dimensions

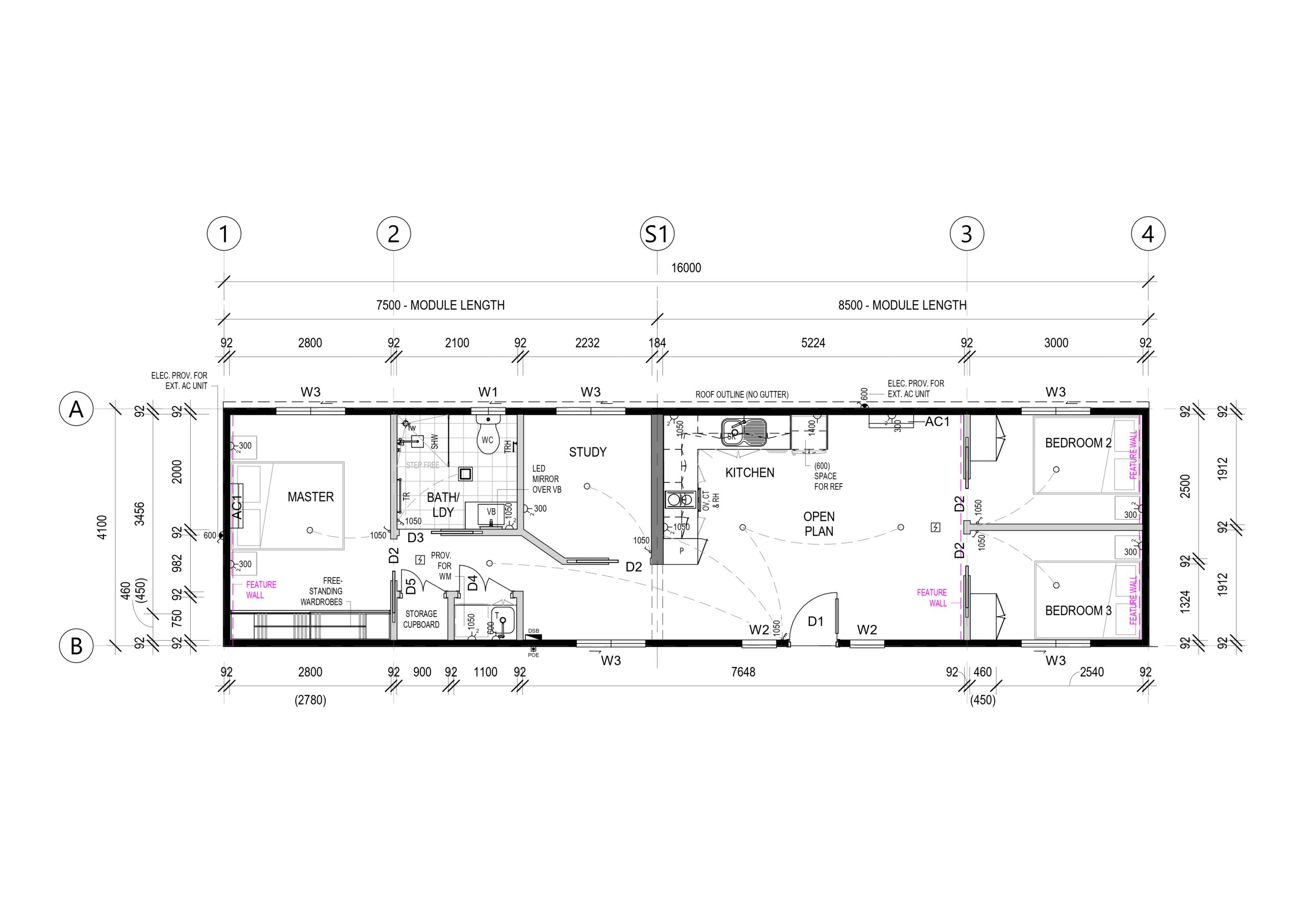

Snowy floor plan

Specifications

Engineered to last

Sub-Floor System

  • Skid beams: W10x22 steel skid beam system

Floor System

  • Floor framing: 100 x 1.5mm lipped channel joists @ 450mm CS
  • Insulation – u/floor: R15 (or equiv.) minimum insulation value
  • Flooring: 3/4″ structural plywood
  • Floor covering: SPC planks (stone plastic composite core)
  • Decking: Composite timber decking

Wall System

  • Framing: 92mm (or equiv.) engineered steel frame
  • Insulation: R15 (or equiv.) minimum insulation value to internal and external walls
  • Cladding: Choice of themes — Modern, Contemporary, Hamptons, Traditional
  • Internal: 5/8″ drywall, set & painted
  • Bathroom: Lined with SPC sheets

Roof System

  • Roof system: Engineered steel frame/rafter system
  • Insulation: R19 (or equiv.) batts + R9 (or equiv.) blanket over — total minimum R26
  • Roofing: Steel panel roofing
  • Internal: 5/8″ drywall, set & painted (square set)
